Electroacoustic specs
2-way passive constant curvature WST® 10° enclosure (installation version)
amplified by LA2Xi / LA4X / LA8 / LA12X
| Usable bandwidth (-10 dB) | 66 Hz – 20 kHz ([A10]) |
| Maximum SPL1 | 140 dB ([A10]) with LA2Xi (bridge mode) / LA4X / LA8 / LA12X |
| Nominal directivity (-6 dB) | Enclosure: 10° |
| Transducers | LF: 1 × 10″ cone driver |
| Acoustical load | LF: bass-reflex, L-Vents |
| Nominal impedance | 8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | 1 × 4-point terminal block with push-in connection |

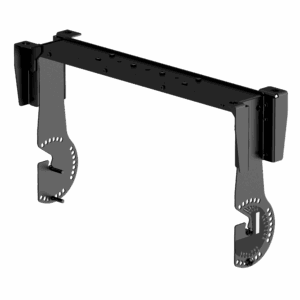

| Rigging and handling | external rigging kits |
| Weight (net) | 19 kg / 42 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | coated steel grill |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
Dimensions
