L1 System
The Sound. The Shape. The Future.

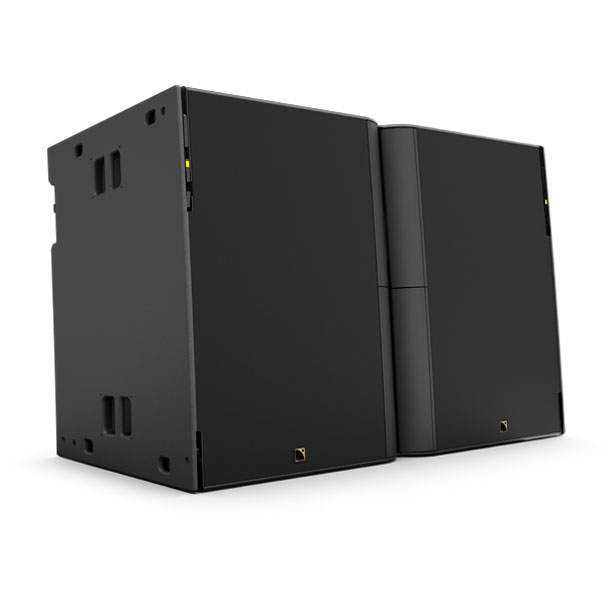

The L1 System
L1 represents our boldest step forward in large-format sound, engineered for the world’s most demanding stages. From stadium tours, arena productions, the largest festivals, and prestigious venues, it delivers the scale and power these environments require while preserving the tonal integrity that connects audiences through the best shared sound at any scale. With a new level of control and system efficiency, L1 ensures consistent performance and enables repeatable excellence, show after show.

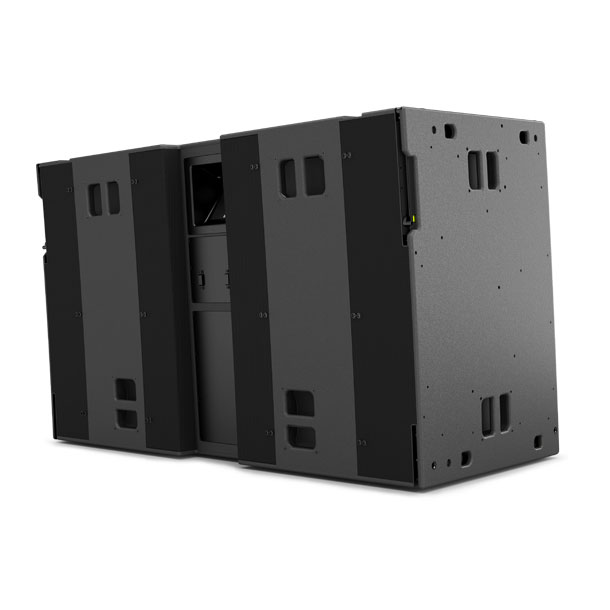

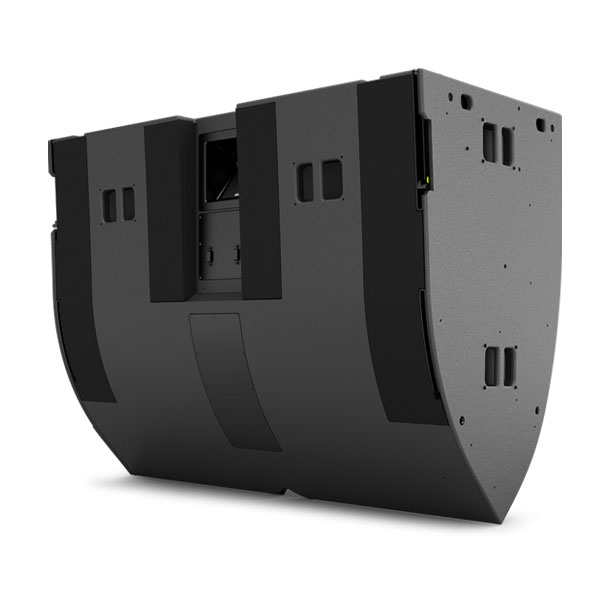

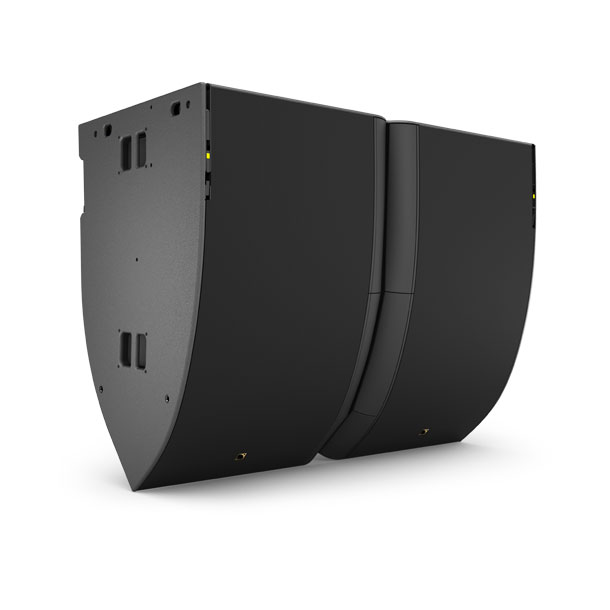

The L1 system comprises L1 and L1D, acoustically identical enclosures that differ in their progressive curvature. From top to bottom, the system is built on the same core element, ensuring full acoustic consistency across the entire line. L1 is designed for long-throw performance while L1D serves as the final element, extending the coverage to the near field and completing the array’s vertical profile.
Applications
Specifications
| L1 | L1D | |
|---|---|---|
| Max SPL | 160 dB | 155 dB |
| Bandwidth | 35 Hz-20 kHz | |
| Transducers | LC: 2 x 18” LF: 4 x 15” MF: 8 × 8” HF: 6 x (4” + 2.5”) coaxial drivers with a passive crossover |
|
| Weight | 256 kg / 564 lb | 239 kg / 527 lb. |
|
Dimensions
(W x H x D) |
1500 mm (59 in) x 1005 mm (39 in) x 750 mm (30 in) |
1500 mm (59 in) x 1167 mm (46 in) x 750 mm (30 in) |
Categories
Product type
Documentation Centre

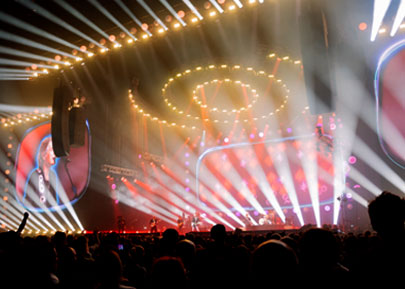

Meet The One
The Best Sound
L1 is the most powerful system ever developed in its class, setting a new reference across every meaningful metric: SPL, SPL/m, SPL/kg, and SPL/m2. Power at this level is not defined by loudness alone. It is the ability to maintain tonal integrity and impact at scale. Whether operating at moderate or extreme levels, L1 delivers consistent energy, clarity, and balance across the entire audience.

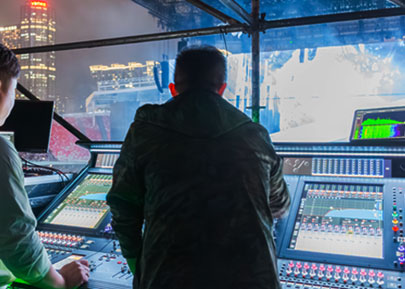

The Most Control
L1 delivers comprehensive three-dimensional pattern control, directing sound exactly where it is needed. In the horizontal plane, coverage adapts to the venue’s dimensions with controlled directivity, keeping energy focused on the audience while minimizing spill in unwanted areas. In the vertical plane, coverage remains consistent from the front rows to the far field, preserving tonal balance and clarity across the entire listening area.

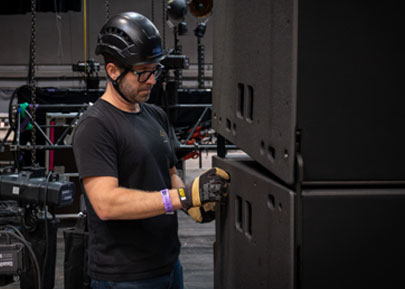

The Highest Efficiency
The one-to-one architecture between L1 and LA7.16 enables independent amplification and DSP control of every acoustic element, maximizing performance, consistency, and energy management at scale while simplifying cabling and system infrastructure. Integrated auto-lock rigging further streamlines deployment with fast, safe, and error-free assembly, reducing setup time compared to traditional large-format line-array systems.
The Magic Behind L1

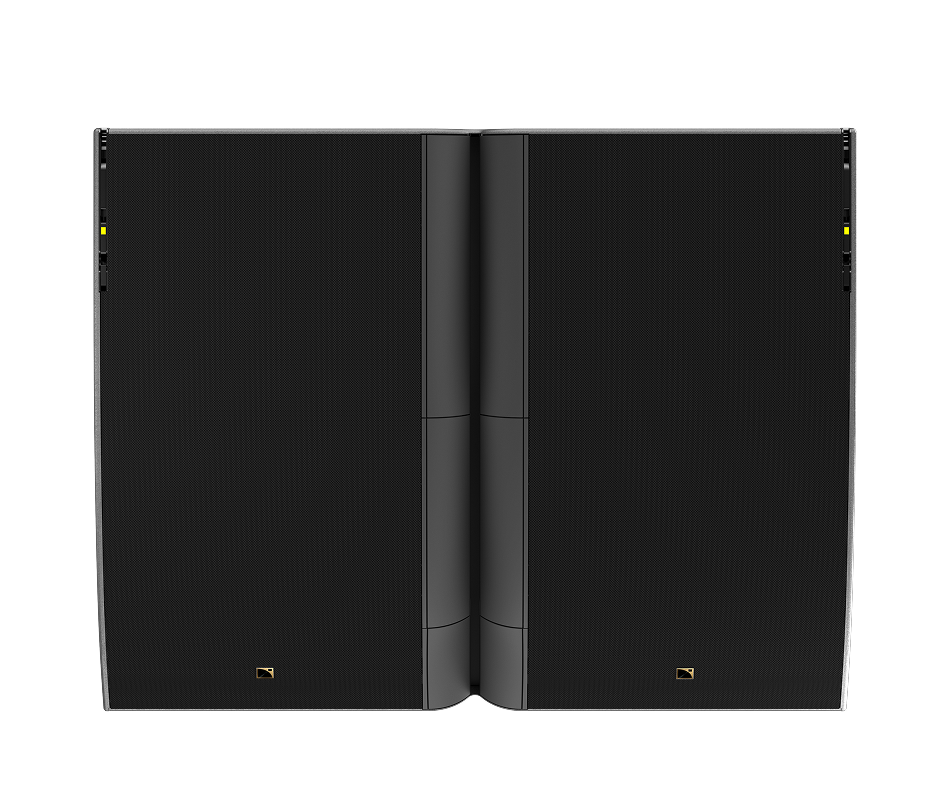

Progressive Ultra-Dense Line Source (PULS) Technology
PULS technology maximizes the active radiating factor (ARF) by integrating a high density of transducers into an ultra-dense configuration, achieving 100% ARF per box and up to 98% across a full array. This makes full use of the enclosure surface, creating the best acoustic starting point, further enhanced by the high-resolution LA7.16 platform, which drives each acoustic element of L1 individually with precision. The combination of high ARF, processing granularity, and integrated cardioid enables precise control of energy across the vertical and horizontal planes over the full frequency range.
Panflex
Panflex, a patented technology, provides precise, tool-free adjustment of horizontal coverage through mechanically integrated fins. By adapting on-site directivity to match specific audience geometries, a single enclosure provides four distinct coverage patterns, effectively eliminating the need for multiple fixed-box inventories. For L1, this includes 70°, 90°, and 80° asymmetrical configurations, while L1D expands to 70°, 110°, and 90° options. This versatility simplifies system design, reduces transport requirements, and maximizes asset utilization.

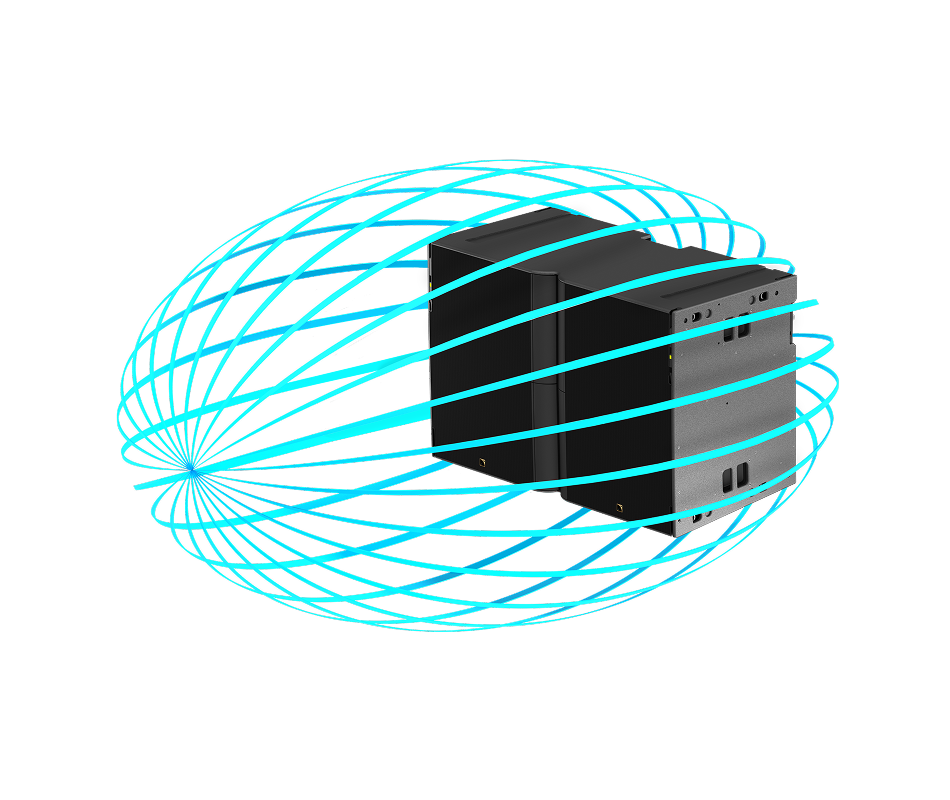

Beyond Cardioid
The patented cardioid design of the L Series is based on the precise driver alignment and acoustic control. In L1, four front-firing 15” LF drivers work with two side-mounted 18” cardioid drivers to project high-impact energy forward while achieving 18 dB attenuation behind. (25-250 Hz) This topology preserves strong frontal impact while reducing unwanted energy where needed. Users can select among cardioid, supercardioid, and enhanced side-rejection presets to adapt the system’s behavior to any environment.

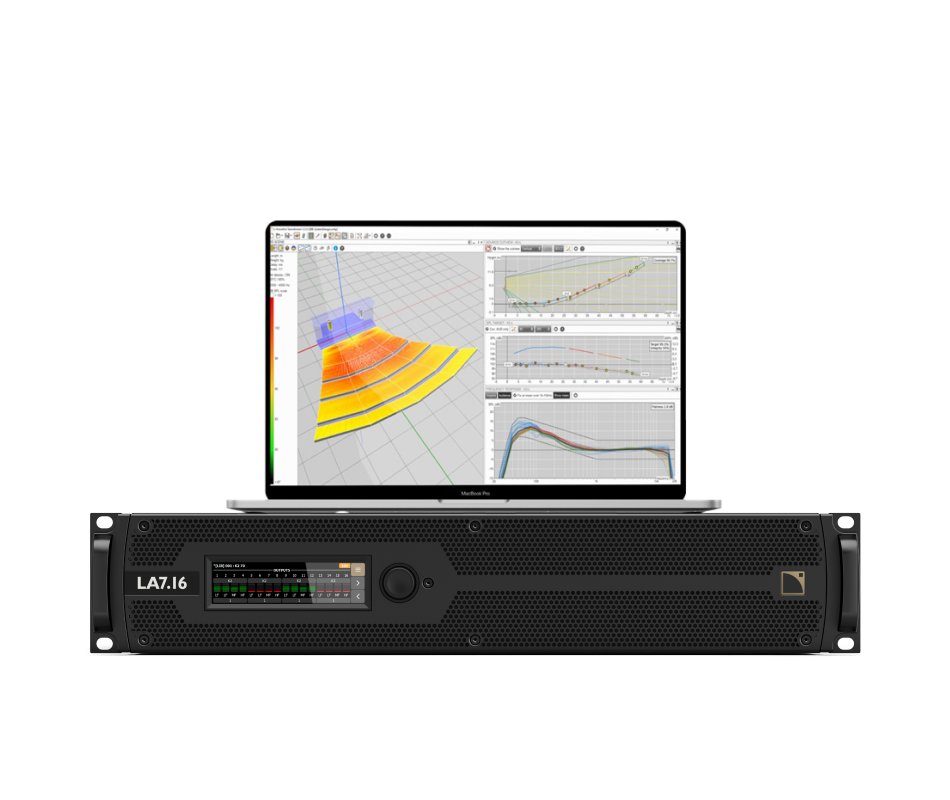

Autofilter
Autofilter is a full-range optimization tool that shapes the energy distribution across the array to ensure consistent tonal balance and coverage for every listener. Utilizing FIR filters to achieve independent control of magnitude and phase, it delivers predictable, coherent system behavior from the front row to the last. With L1, Autofilter now extends this control into the lowest frequencies, enabling effective beam control down to 20 Hz without additional latency. The result is consistent, balanced energy across the full spectrum with smoother coverage, all integrated into the standard workflow with a single click.

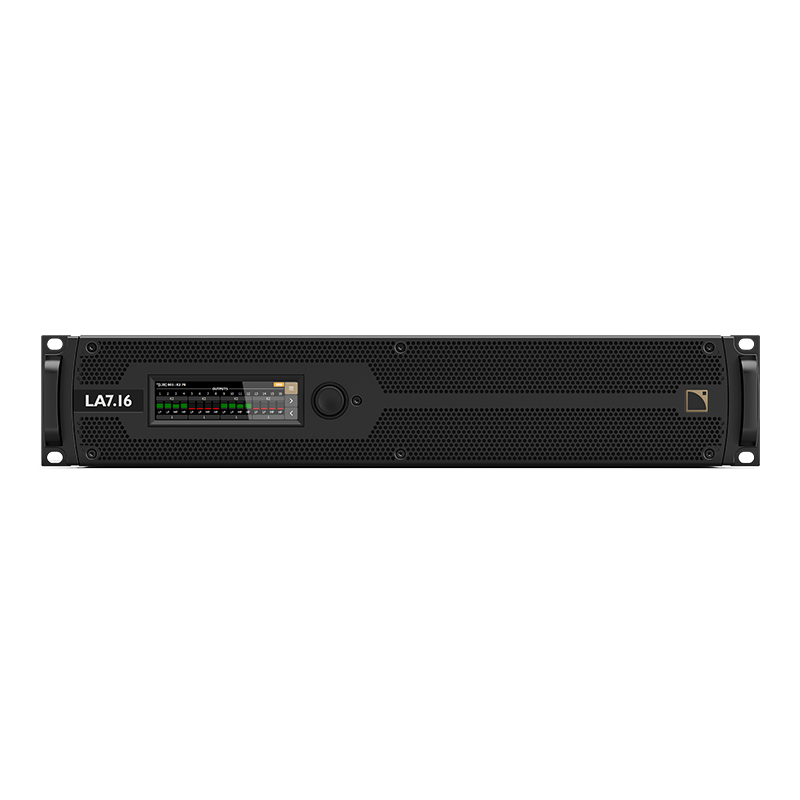

LA7.16 Amplified Controller
One LA7.16 amplified controller drives one L1 enclosure, delivering powerful, high-resolution DSPs through 16 output channels. This degree of discretization of processing and amplification provides maximum vertical granularity of control at the individual acoustic element level. Enabling precise forward energy management and rear cancellation in the LF, together with refined tonal balance and directivity in the MF and HF ranges. In combination with Autofilter, this foundation produces uniform frequency response and coverage across the audience space regardless of array length or configuration.
Who Benefits from L1
- Stronger emotional connection through clear, powerful sound at any scale.
- Consistent listening experience across the audience, maintaining clarity, balance, and impact from front rows to the last.
- Pure, refined sound signature, with controlled energy that preserves and delivers a comfortable premium listening experience.
- Up to 3x faster deployment vs. traditional line arrays, enabling quicker turnarounds and greater system availability across projects.
- Raises the value of every truckload, moving more acoustic power without scaling the logistics burden.
- Position your inventory for premium projects today, while ensuring long-term relevance in large-scale sound reinforcement.
- Consistent mix translation at any level, maintaining tonal integrity from the front to back.
- Precise control with minimal spill, placing sound exactly where it belongs, and keeping the stage clean.
- Faster, predictable workflows reduce correction time and enable confident mixing show after show.
- Precise control within the audience area, limiting off-site spill, and enabling confident management of noise constraints across complex multistage environments.
- Compact visual footprint, freeing space for lighting screens, stage design, and simplifying integration within visually driven productions.
- Environmental design support (ESD), reducing approval risk and ensuring compliance with regulatory and community expectations.
Applications
World Tours
Consistency across changing environments: Delivers predictable performance across venues, ensuring reliable mix translations show after show.
Festivals
Control at scale in complex environments: Maintains controlled, consistent sound across large audiences while effectively managing multi-stage
and noise constraints.
Special Events
Agility in high-pressure scenarios: Adapts quickly to diverse environments, delivering predictable results under tight and dynamic timelines.
A Legacy of Relentless Innovation
*Product images are shown to scale
Click to see the timeline

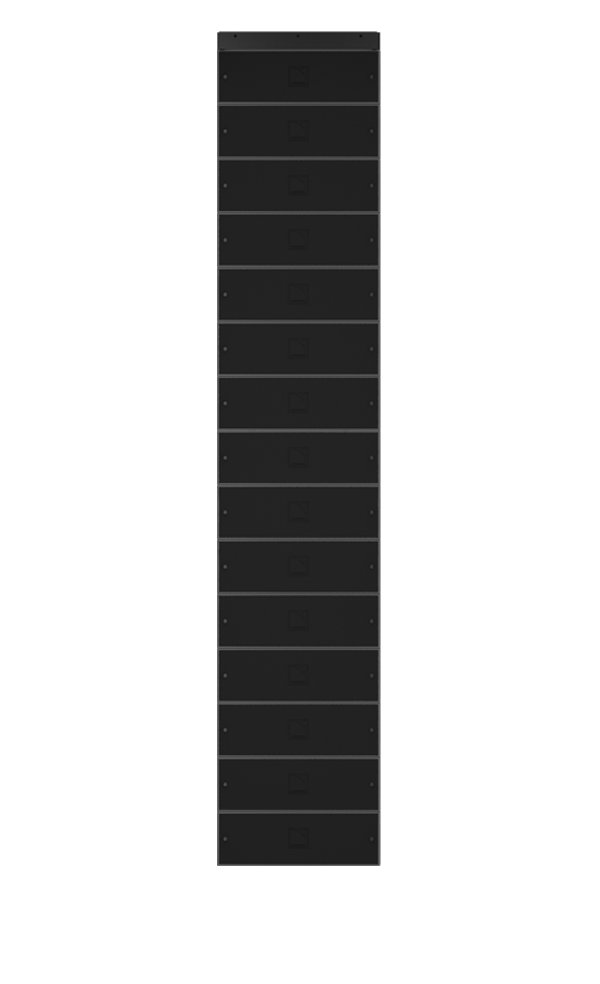

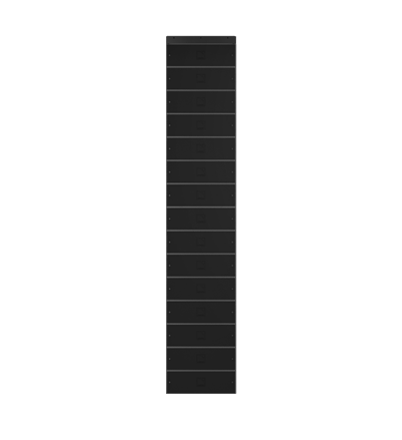

1992: V-DOSC

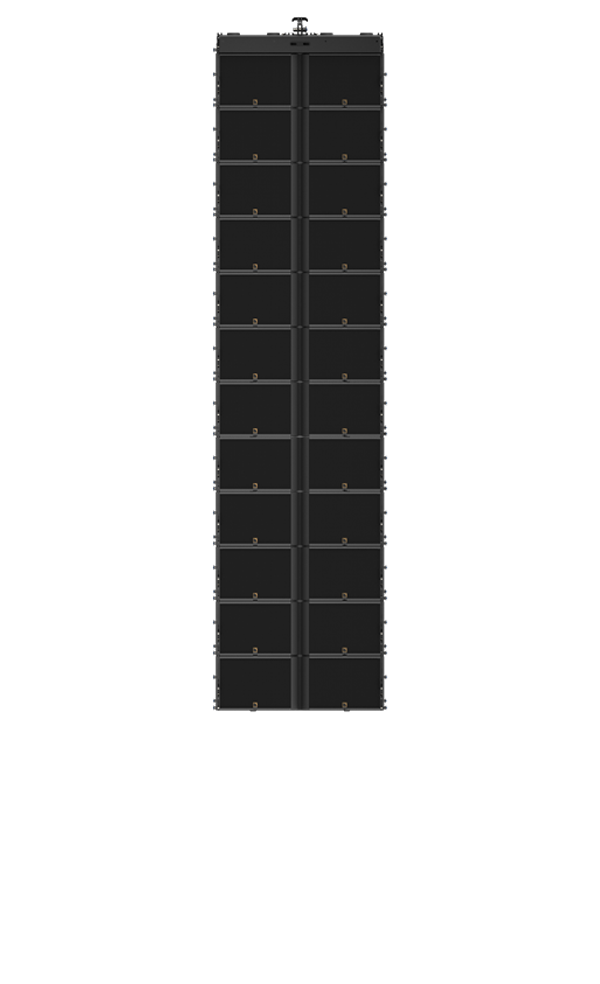

2008: K1

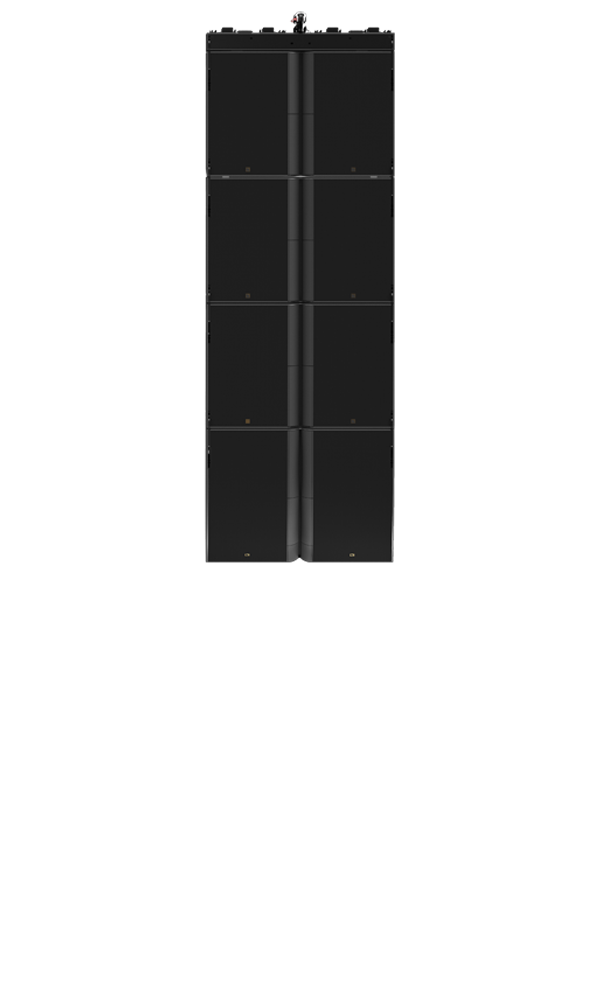

2026: L1
1992: V-DOSC
2008: K1
2026: L1
Related Products
L1 in the News
Frequently Asked Questions
L1 is a native component of the L-Acoustics ecosystem, designed for seamless integration with our entire hardware and software catalog. It features full mechanical and acoustic compatibility with the CS1 subwoofer, enabling unified deployments for maximum low-frequency impact. For broader applications, L1 works in concert with L2 or K Series enclosures to serve as delays, sidefills, or distributed coverage. This shared architecture, centered on the LA7.16 amplified controller, simplifies system design, streamlines cabling, and ensures absolute tonal consistency across even the most complex deployments.
To meet its specific performance benchmarks, L1 is engineered as a unified system architecture optimized exclusively for the LA7.16 amplified controller. The system relies on high-resolution processing across discrete channels, allowing for individual control of every acoustic element within the enclosure. This granular level of command is essential for the precision, efficiency, and energy management that define the L1. Using any other amplification would compromise the tonal integrity and predictive behavior that are the hallmarks of our engineering.
L1 represents the evolution of that legacy, delivering a significant leap in power density. In practice, an L1 array can be approximately 30% shorter than an equivalent K1 deployment while delivering superior power and headroom. This allows productions to achieve flagship-level performance with a significantly smaller footprint, reduced weight, and optimized logistics. For a detailed comparison, refer to the Soundvision use cases available in the download section.
When using the L1 BUMP, up to ten L1 elements can be flown in a single array, typically configured with nine L1 enclosures and 1 L1D terminal element to ensure ideal progressive curvature. This configuration represents a milestone in output-to-weight ratios; a ten-element L1 array delivers performance that exceeds that of a thirty-element K1 deployment. This achievement enables a level of scale and power previously unattainable within these mechanical and structural constraints.
L1 achieves up to 18 dB of broadband rejection between 32 Hz and 250 Hz and more than 26 dB of rejection below 80 Hz behind the array. This level of attenuation ensures a clean stage environment, minimizes off-site impact, and maintains the temporal integrity and high-resolution clarity required in the audience area.
