- Front

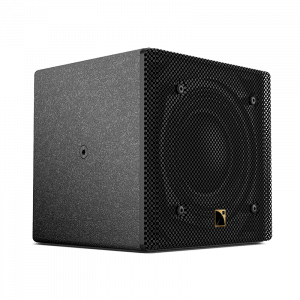

SB15m
Compact subwoofer, 15"
| Max SPL | 137 dB |
| Low frequency limit | 40 Hz |
| Transducers | LF: 1 x 15" |
| Weight | 36 kg / 79 lb |
| Directivity | standard or cardioid configurations |
Inspiration
L-Acoustics Kiva II Enhances Speech Intelligibility at Historic Royal Masonic School for Girls
Iconic London Venue Reborn: The Roof Gardens Elevates Member Experience with State-of-the-ArtL-Acoustics Professional Sound System
Paris’ Prestigious Théâtre de la Ville Goes Immersive with L-Acoustics L-ISA
Need more information?
Check out our Documentation Center for more documents on this product.
Electroacoustic specs
High power compact subwoofer : 1 x 15''
amplified by LA2Xi / LA4X / LA8 / LA12X
| Low frequency limit (-10 dB) | 40 Hz ([SB15_100]) |
| Maximum SPL1 | 137 dB ([SB15_100]) |
| Nominal directivity (-6 dB) | standard or cardioid |
| Transducers | 1 x 15″ cone driver |
| Acoustical load | bass-reflex, L-Vents |
| Nominal impedance | 8 Ω |
1 Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | 2 × 4-point speakON |
| Rigging and handling | 2 x handles |
| Weight (net) | 36 kg / 79 lb |
| Cabinet | premium grade Baltic birch plywood |
| Front | coated steel grill |
| Rigging components | high grade steel with anti-corrosion coating |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
Dimensions
