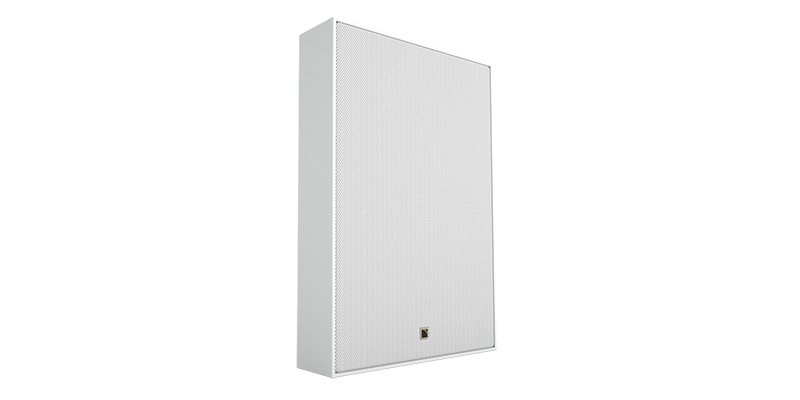

- White

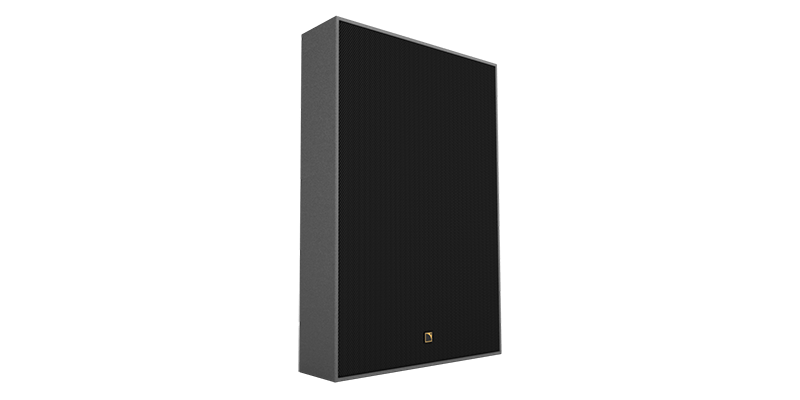

SB6i
Ultra-shallow subwoofer, dual 6.5"
| Max SPL | 115 dB |
| Low frequency limit | 29 Hz |
| Transducers | LF: 2 x 6.5" |
| Weight | 9 kg / 20 lb |
| Directivity | standard |
Need more information?
Check out our Documentation Center for more documents on this product.
Electroacoustic specs
Ultra-shallow subwoofer: 2 x 6.5" (installation version)
amplified by LA2Xi / LA4X / LA7.16i
| Low frequency limit (-10 dB) | 29 Hz ([SB6_60]) 29 Hz ([SB6_100]) 32 Hz ([SB6_200]) |
| Maximum SPL1 | 110 dB ([SB6_60]) 111 dB ([SB6_100]) 115 dB ([SB6_200]) |
| Nominal directivity (-6 dB) | standard |
| Transducers | 2 × 6.5“ cone driver |
| Acoustical load | bass-reflex |
| Nominal impedance | 4 Ω |
1 Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | 1 × 4-point terminal block with push-in connection |
| Rigging and handling | 8 M6 inserts for in-wall and on-wall accessory In-wall/in-ceiling versions |
| Weight (net) | 8,6 kg / 19 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | coated steel grill |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
Dimensions
