Electroacoustic specs

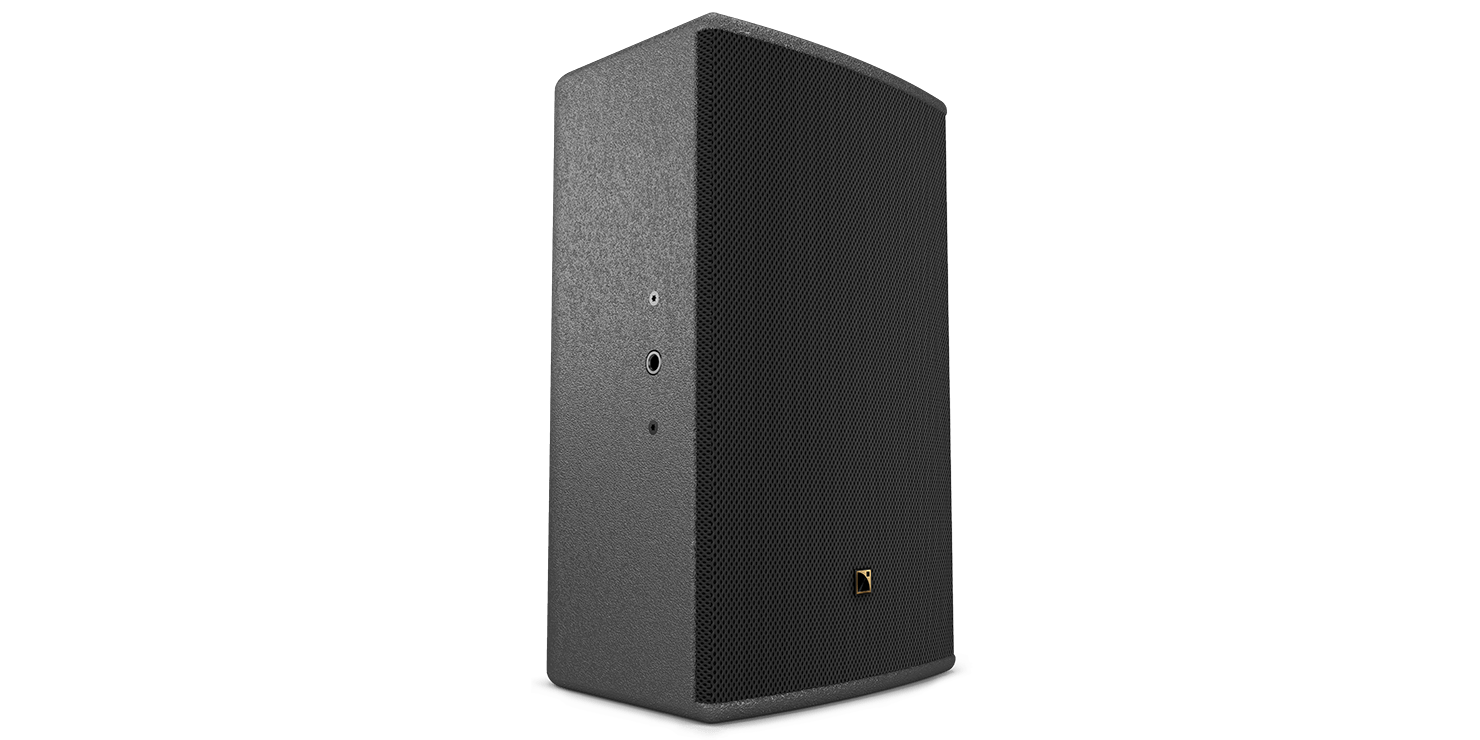

2-way passive coaxial enclosure
amplified by LA2Xi / LA4X / LA8 / LA12X
| Usable bandwidth (-10 dB) | 60 Hz – 20 kHz ([X8]) |
| Maximum SPL1 | 129 dB ([X8]) |
| Nominal directivity (-6 dB) | 100° axisymmetric |
| Monitor angle | 35° |
| Transducers | LF: 1 × 8″ cone driver |
| Acoustical load | LF: bass-reflex, L-Vents |
| Nominal impedance | 8 Ω |
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | IN: 1 × 4-point speakON |
| Rigging and handling | 1 handle |
| Weight (net) | 12 kg / 26.5 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | Coated steel grill |
| Finish | dark grey brown Pantone 426 C |
| IP | IP43 |
Dimensions
